Self Levelling Compound for Concrete: Your 2026 Guide

You've pulled up the old bathroom floor coverings, and now the slab is staring back at you. It's dusty, patchy, and nowhere near as flat as the tile sample you've got sitting on the vanity. One corner dips, another has a ridge where a previous repair was done, and suddenly the idea of laying clean, straight tiles feels a lot less simple than it did at the showroom.

That's where self levelling compound for concrete comes in. On a Melbourne bathroom renovation, it's often the step that decides whether the finished floor looks crisp and professional or slightly off forever. Large-format tiles, linear drains, tight shower falls, and neat transitions all depend on the substrate being right before a single tile goes down.

This isn't a niche product anymore. The Asia-Pacific region, including Australia, commanded 38% of the global self-leveling concrete market in 2023, with a projected market size of USD 9.10 billion by 2032, according to SNS Insider's self-leveling concrete market report. That matters because it shows how standard these systems have become in modern renovation and construction work.

In bathroom renovations, good levelling isn't about making a floor “good enough”. It's about creating the base that waterproofing, screeding, tile adhesive, and the finished tile surface all rely on. Registered builders and experienced tilers use these compounds because they solve a very specific problem fast, accurately, and with repeatable results when the prep is done properly.

Table of Contents

Introduction The Foundation of a Flawless Finish

Most bathroom floors don't fail at the tile. They fail underneath it. A slab can look solid and still be unsuitable for tiling because it has hollows, height changes, weak surface dust, or previous patch repairs that telegraph straight through the finished job.

That's why a levelling layer matters so much on concrete. It gives you a flat, predictable substrate instead of asking tile adhesive to do work it was never meant to do. Adhesive is for bonding tile. It isn't there to correct a badly out-of-plane floor across the whole room.

In Melbourne bathroom renovations, this problem shows up constantly. Old homes often have movement, previous plumbing changes, mixed substrates at doorways, and patchwork concrete where fittings have been relocated. Newer builds can still have enough variation to create issues once you start laying larger tiles or trying to achieve clean lines through a shower area.

What a proper base changes

A well-levelled concrete floor improves more than appearance. It helps with:

  • Tile adhesion because the bed thickness stays more consistent
  • Drainage control where falls need to be formed correctly in wet areas
  • Finish quality so lippage is easier to avoid
  • Workflow because the tiler spends less time fighting the substrate

Practical rule: If the floor is uneven before waterproofing and tiling start, the finished bathroom will usually show that problem somewhere. It might be at the doorway, around the waste, or across the tile edges.

A lot of homeowners see self levelling compound for concrete as a DIY shortcut. Sometimes it can be. But on a bathroom renovation, it's more accurate to think of it as a precision material. It rewards careful preparation and punishes shortcuts. That's exactly why registered builders and experienced tilers rely on it. Used properly, it creates the kind of base needed for premium finishes. Used carelessly, it can lock defects in place very quickly.

Why it's become standard practice

The growth in use across Australia isn't hard to understand. Renovations now demand flatter floors, cleaner transitions, and surfaces that can carry premium finishes without movement or visual distortion. Self-levelling underlayments answer that need better than rough patching or trying to build everything up with adhesive.

In practice, the best results come when the whole floor system is treated as one sequence. Concrete first. Surface prep next. Primer after that. Then the levelling pour. Then the rest of the bathroom build. Once you approach it that way, the finish becomes much more predictable.

What Is Self Levelling Compound

Self levelling compound is a cement-based underlayment designed to flow across a prepared surface and settle into low areas, leaving a flatter plane behind. On site, the simplest way to explain it is this: it behaves more like thick pancake batter than standard concrete.

Regular concrete is coarse and stiff. You push it, rake it, and work it into place. Self levelling compound for concrete is different. Once mixed correctly, it spreads under its own flow and helps remove minor undulations that would make tiling difficult.

An infographic explaining self-levelling compound, its consistency, and its benefits for creating flat, smooth floor surfaces.

What it does and what it doesn't do

Homeowners often confuse three different materials:

  1. Structural concrete, which forms the slab itself
  2. Traditional screed, which is used to shape or level areas manually
  3. Self-levelling underlayment, which smooths and flattens the substrate

That distinction matters. A levelling compound isn't there to replace a structural slab, and it isn't the right answer for every major defect. If the concrete is loose, contaminated, cracked badly, or moving, the leveller won't fix the underlying cause.

What it does do very well is create a smooth, flat surface for tile, timber, vinyl, or other floor finishes. In bathroom renovations, that flatter plane makes every next step easier. Waterproofing sits better, tile layout is more controlled, and the final floor doesn't show the unevenness of the old slab.

Self-levelling products are best thought of as finish preparation materials, not miracle repairs.

Why flow matters so much

The advantage of the material is in the flow. When mixed to the manufacturer's ratio, it moves into dips and helps blend transitions without endless hand-trowelling. That's why professionals use gauge rakes, smoothing tools, and spiked rollers to guide the product, not to force it into behaving like sand and cement.

A good self levelling compound for concrete should leave the floor flatter and cleaner than manual patching alone. A bad pour, though, can create ridges, trapped air, weak dusty surfaces, or edge build-up that has to be ground back later.

That's the trade-off. The product saves time and improves finish quality, but only if the slab is prepared properly and the installer respects the working time, mixing ratio, and substrate requirements.

Choosing the Right Compound for Concrete Substrates

A bathroom slab can look close enough until the first tile goes down and the lippage starts showing under the light. Product choice often decides whether the floor finishes cleanly or turns into extra grinding, patching, and delay.

For concrete substrates, the right self levelling compound is chosen by function, not marketing. In Melbourne bathroom renovations, I look at four things first. How much correction the floor needs, whether the area is internal or exposed, what finish is going over the top, and whether the job needs flattening only or shaped falls as well. Registered Builders work this way because the leveller has to suit the whole floor system, not just the pour itself.

Most bathroom jobs suit a polymer-modified cement leveller over sound concrete. It gives good flow, bonds well when matched with the correct primer, and leaves a surface suitable for tile installation. That said, one product will not cover every condition on site.

What actually matters when selecting a product

Thickness range comes first. Some compounds are designed for a skim correction, while others can handle deeper fill in a single application. If the slab has isolated hollows, doorway transitions, or an uneven set-down near the shower, the allowable build matters straight away. Use a product outside its stated range and the risks go up fast. Cracking, weak spots, delayed drying, and surface dusting are all common outcomes.

Compressive strength matters too, especially under large-format porcelain and stone. A soft underlayment under a heavy tile finish can become the failure point even when the tile adhesive is sound. For a bathroom floor, the levelling layer needs enough strength to support foot traffic, fixtures, and the tile assembly above it without breaking down.

Then check location and exposure. Internal bathroom floors are one category. Balconies, thresholds, laundries opening to external doors, and other exposed areas are another. Some products are made only for indoor use. Others are rated for broader exposure, but the rest of the system still has to match. Leveller selection does not override waterproofing requirements, movement joints, or moisture management in the slab.

There is also a point many DIY renovators miss. If the floor needs proper falls to a shower waste, a standard self leveller is often the wrong material to rely on by itself. In that case, a screeding system for tiled wet areas is usually the better approach, with leveller used only where it suits the floor outside the formed wet area.

The product data sheet should match the site condition, the tile finish, and the build sequence. If it does not, choose a different compound.

Self-Levelling Compound Selector

Compound Type Best For Typical Thickness Strength Notes
Polymer-modified cement underlayment Internal concrete floors before tiling, vinyl, or timber Thin to moderate correction, subject to product limits Check the manufacturer data sheet for compressive strength and substrate suitability
High-performance floor leveller Bathroom renovations, large-format tile support, concrete substrates needing a stronger underlayment Moderate build applications where the product is rated for that depth Suitable where higher compressive strength is specified by the manufacturer
Indoor and outdoor self-levelling compound Residential and commercial areas where exposure conditions affect product choice Depends on the exact product and environment Confirm suitability for exposure, bond, and strength before use

Professional selection is usually more conservative than DIY selection, and for good reason. Registered Builders and experienced tilers choose the compound that fits the substrate, the waterproofing method, the tile format, and the program. Homeowners can absolutely handle small, straightforward floor corrections, but if the slab is cracked, moisture-affected, out of level across multiple areas, or part of a full Melbourne bathroom renovation with tight tolerances, it is worth getting a builder or tile contractor involved before any product is mixed.

Surface Preparation and Priming The Most Critical Steps

A bathroom floor can look solid and still fail under tile if the slab is dusty, weak on the surface, or sealed in patches from old products. I see this regularly in Melbourne renovations. The leveller gets blamed, but the underlying issue started before the bag was opened.

Before any self levelling compound for concrete goes down, the concrete needs to be clean, sound, dry enough for the product system, and free of anything that will interfere with bond. That includes laitance, curing residues, paint, silicone, old adhesive, soap contamination near wet areas, and loose repair material. If any of that stays on the slab, the compound may flow nicely on the day and still release later.

A construction worker cleaning a dusty concrete floor with a heavy duty industrial vacuum cleaner.

What has to happen before the primer goes down

Inspection comes first. In a bathroom, that means checking for drummy areas, shrinkage cracks, old patch repairs, moisture-related damage, and height changes between the main floor, doorway, and shower zone. It also means deciding whether the floor needs flattening or whether it needs controlled falls. Those are different jobs. If the room needs shaped wet area falls, a proper screeding solution for tiled surfaces is often the right method, because self leveller is designed to find level, not create drainage.

Measure the slab with a straightedge. Mark the highs and lows. Check around penetrations and wall junctions where product can escape. On renovation work, I also look for the hidden problems that catch DIYers out, such as feathered adhesive residue, hairline cracking through old toppings, and surface hardeners that stop primer from soaking in properly.

Good preparation usually includes:

  • Vacuuming thoroughly until the slab is dust-free
  • Grinding or mechanically abrading weak or contaminated areas
  • Removing old adhesive, paint, and surface films
  • Sealing gaps, waste penetrations, and perimeter leakage points
  • Checking levels and setting target heights before any mixing starts

If your hand comes away dusty after rubbing the slab, it still needs work.

Priming is not the step to rush

Primer controls suction and helps the levelling compound bond to the concrete. On porous slabs, it stops the substrate from pulling water out of the mix too fast. On dense or treated surfaces, it improves adhesion and helps the leveller cure more evenly.

The trade-off is time. Primer adds another stage, but skipping it or pouring over primer that has not dried correctly can lead to pinholes, soft edges, inconsistent flow, and debonding. In a Melbourne bathroom renovation, that risk matters because the floor build-up has to work with waterproofing, set-downs, tile thickness, and finished heights at the doorway.

The drying window depends on the substrate and the primer system. As noted in this application guidance video on priming before self-levelling, non-porous surfaces generally need longer than porous ones. The safe approach is simple. Follow the product data sheet, allow full drying time, and do not assume touch-dry means ready to pour.

Registered Builders are usually stricter here than DIY renovators because this stage affects every layer above it. If the slab is cracked, moisture-affected, badly contaminated, or part of a bathroom where falls and waterproofing need to comply, get a builder or experienced tiler involved before priming starts. It is far cheaper to correct the substrate now than to pull up tilework later.

Mixing and Application Fundamentals

Good prep can still be undone in the bucket. In bathroom renovations, I see more failed levelling jobs caused by bad mixing and poor pour sequencing than by the product itself. The compound only gives you a short working window, so the job has to be set up before the first bag is opened.

A clean, organised mixing area keeps the pour controlled and the finish consistent.

A construction worker mixing self-leveling compound in a white plastic bucket using a drill with a mixer attachment.

Get the mix right before you chase speed

Set out the drill, paddle, buckets, measuring vessel, rake or finishing trowel, spiked roller, and clean water before you start. If you are still hunting for tools once the first batch is mixed, the floor will show it. For anyone putting together the basics, a proper set of tiling and floor preparation tools gives you much better control over the pour.

Water ratio matters. Registered Builders and experienced tilers follow the data sheet exactly because small changes in water content change how the product flows, how it settles, and how it cures. Add too little and the material drags and leaves ridges. Add too much and you can weaken the surface, increase laitance, and create a soft or dusty top that causes problems under tile adhesive later.

Mix each batch the same way, for the same time, with the same measured water. On a small Melbourne bathroom floor, inconsistency between batches is enough to leave visible humps, cold joints, or edge lines where one mix started tightening before the next one landed.

The application sequence should be simple and deliberate:

  1. Start at the furthest point from the doorway so you can work back toward your exit.
  2. Keep batches coming steadily so wet edges stay alive and each pour blends into the last.
  3. Move the compound into place with a gauge rake or trowel rather than pushing it around excessively.
  4. Use a spiked roller promptly to release trapped air and help the surface settle evenly.

For readers who want to watch the movement and timing of the material, this demonstration is useful:

How to estimate material without guessing

Running short halfway through a pour is one of the classic DIY mistakes. Once that happens, people start stretching the mix, reducing depth, or trying to patch in a second pour after the first has already begun to set. That is how a flat floor turns into a grinding job.

Work out the area, check the intended build thickness, then calculate bag numbers from the manufacturer's coverage guide. As noted earlier in the article, bag coverage drops quickly as depth increases, so even a small bathroom can use more material than expected if the slab has low spots or an uneven set-down.

On-site advice: Measure the deepest point, not the average point you hope for. Then allow extra material for the dips that only show up once the straightedge goes down.

This is also where professional judgement matters. Self levelling compound is designed to correct flatness. It does not replace proper bathroom falls to the waste, and it does not solve structural movement, loose concrete, or out-of-level framing beneath the substrate. In a Melbourne bathroom renovation, that distinction matters because the finished floor has to work with waterproofing heights, tile thickness, and drainage requirements. If the floor needs significant correction, if falls are unclear, or if the slab condition is questionable, that is the point to get a Registered Builder or experienced tiler involved instead of guessing and hoping the adhesive will make up the difference.

Drying Times Troubleshooting and Tiling

Monday morning in a Melbourne bathroom renovation, the leveller can look hard, pale, and ready to go. By lunchtime, a DIYer has stacked tile boxes on it and wants to start spreading adhesive. That is often the point where a tidy job starts drifting off standard.

A self levelling pour has to do more than feel firm underfoot. It needs enough cure for the next stage, and that judgement comes from the product sheet, site temperature, slab conditions, layer thickness, and what is being installed over the top. In bathrooms, that matters because any weakness below the tile usually shows up later as drummy spots, cracked grout, or loss of bond.

Walkable and tile-ready mean different things

Many compounds are designed to set quickly. A firm surface only means light traffic may be possible. It does not confirm the floor is ready for tile adhesive, waterproofing, or concentrated loads from ladders, stacked materials, and other trades.

On site, I treat early walkability as a handling milestone, not a green light to keep building over it.

The safe approach is simple. Read the manufacturer's timing for the exact product, then check the room itself. Cool weather, poor ventilation, higher build areas, and damp concrete all slow the process. In a Melbourne bathroom renovation, that delay is common in winter and in older homes with colder slabs. Rushing the tile stage to save half a day can cost far more in rectification.

If the substrate forms part of a tiled wet area, the floor also has to suit the full system above it. That is one reason clients often hand this stage and the next one to experienced floor tiling specialists in Melbourne, where substrate condition, tile finish, and bathroom tolerances are checked together instead of as separate tasks.

Common faults and what usually causes them

Most levelling failures are predictable once you know what to look for.

  • Pinholes or bubbling usually point to poor priming, residual dust, or air rising out of porous concrete.
  • Ridges, cold joints, or lap marks usually mean the pour stopped, batches were inconsistent, or the wet edge was lost.
  • A soft or chalky surface usually comes from excess water in the mix, weak surface prep, or fast moisture loss into the slab.
  • Cracking usually points to movement in the base, incorrect thickness for the product, or application over contamination.
  • Debonding or hollow patches usually mean the compound never properly keyed into the concrete.

The pattern matters. A few isolated surface defects may be repairable. Widespread bond failure usually means the floor has to come out and be redone properly.

What to do before tiling

Check the floor with a straightedge after cure, not just by eye. Bathrooms can fool people because small rooms make a floor look flatter than it is. Then inspect for soft spots, edge curl, dusting, and any area that sounds hollow under a tap test.

If the leveller is sound, flat, and cured for the next stage, tiling can proceed. If it is not, fix the substrate first. Tile adhesive is for bonding tile, not for correcting a failed levelling job or hiding poor flatness.

That is the practical difference between a DIY pour and a professional bathroom build. Registered Builders and experienced tilers use self levelling compounds because they save time and improve finish quality when the conditions are right. We also know when the floor is telling us to stop, reassess, and correct the base before waterproofing or tiling locks the problem in.

DIY or Call a Registered Builder for Your Renovation

A confident DIYer can use self levelling compound for concrete successfully in the right situation. A dry internal room, a straightforward slab, no waterproofing complexity, and enough time to prepare properly. That sort of project is manageable if you read the product sheet, measure carefully, and don't rush the primer or mixing stage.

Bathrooms are different. The floor build-up isn't isolated. It connects to falls, waterproofing, thresholds, waste positions, wall set-out, and the finished tile layout. If one part is off, the rest of the room usually has to work around it.

When DIY is realistic

DIY is more realistic when:

  • The area is simple and not part of a wet zone
  • The concrete is sound with only moderate variation
  • You can work continuously without stopping halfway through the pour
  • You understand the finish requirement before any tile goes down

That said, even small bathroom floors can punish inexperience because the room is compact. There's less space to manoeuvre, less time to react, and less tolerance for errors at doorways, shower entries, and around wastes.

When a professional should take over

In bathroom renovations, I'd strongly favour a professional when the floor needs accurate falls, waterproofing integration, or defect diagnosis before levelling begins. The tolerance is tight. Before tiling, the floor must not have more than 1/8 inch (3 mm) variation over a 6-foot (1.8 m) length, based on the tile preparation guidance cited earlier. Hitting that consistently is much easier when an experienced hand is checking the substrate.

A Registered Builder becomes especially important when the bathroom renovation involves multiple trades, compliance obligations, or coordination between demolition, plumbing, waterproofing, floor preparation, and tiling. The levelling step can't be treated as a stand-alone task in that context. It has to serve the whole bathroom assembly.

On balconies and other exposed areas, the consequences are more significant. Incorrect levelling can disrupt drainage, compromise waterproofing, and create leak issues that are much more expensive than the original floor prep would have been.

If you're unsure whether the floor needs a simple self-levelling pour or a more complete substrate correction, that uncertainty is often the sign to call someone in. In renovation work, uncertainty is rarely where the risk ends. It's where it starts.

If you're planning a bathroom renovation and want the floor prepared properly from the start, Melbourne Tiling Services P/L can help with complete bathroom renovations, floor preparation, screeding, waterproofing, and premium tiling across Melbourne. As Registered Unlimited Builders, the team coordinates the full process so the substrate, waterproofing, and tile finish all work together, not against each other.

By Melbourne Tiling Services Uncategorized • • • • 0 Comments

Bathroom Ventilation Requirements: A Practical Guide

You can have a beautiful bathroom on paper, frameless shower, big tiles, clean lines, soft lighting, and still end up with a room that fogs up, smells damp, and starts lifting paint around the ceiling joint. I see that problem most often in Melbourne renovations where the bathroom is internal, the window is tiny or useless, and the fan was chosen late, usually after the waterproofing and tiling decisions were already locked in.

That's the trap. Bathroom ventilation requirements aren't a finishing touch, they're part of the build's performance layer. In a cool, damp winter city like Melbourne, the room that's hardest to ventilate is often the first one that fails.

Table of Contents

Why Bathroom Ventilation Decides Whether Your Renovation Lasts

A sleek ensuite can look finished the day the silicone goes on and still be wrong in the one area that matters. I've seen internal bathrooms with perfect tile work, good falls, and expensive fittings end up with flaky paint and mildew because the fan was treated like a token accessory instead of part of the moisture strategy.

The room that tells the truth first

Bathroom surfaces reveal weak planning faster than any other room. If the air can't get out, moisture settles on the ceiling, around the mirror, and inside corners where plaster and paint are most vulnerable. That's when a “finished” bathroom starts looking tired long before the rest of the home does.

A lot of homeowners think waterproofing alone will protect the room. It won't. Waterproofing protects the wet zones and the substrate, but it doesn't remove humid air from the room after a shower. That's where extraction comes in, and it's why registered builders need to think about ventilation before the walls are closed.

Practical rule: if the bathroom can make steam, it needs a real plan for where that steam goes.

In Australian guidance, 25 L/s, about 90 m³/h, is commonly treated as the minimum exhaust floor for bathrooms, while wet bathrooms with showers are often recommended at 50–100 L/s to control condensation and mould risk (bathroom ventilation guidance). That distinction matters because an odour fan and a moisture-control fan are not always the same thing.

For Melbourne homeowners, that becomes a renovation decision, not a maintenance tweak. If you're rebuilding an ensuite or internal bathroom, ventilation should be coordinated with tiling, waterproofing, and ceiling penetrations from day one, not guessed at after the shower screen is installed. A good reference point is this tiling and waterproofing overview, because ventilation and substrate protection are much more connected than you might realise.

What happens when the fan is wrong

Undersized or badly placed extraction doesn't fail dramatically. It fails in a more subtle way. The bathroom just stays damp longer, the mirrors clear too slowly, and the room begins to carry that stale, humid smell that many notice only after the damage is already visible.

That's why I treat ventilation as part of the structure, not the accessories list. It affects paint, plaster, grout lines, sealants, and the lifespan of the renovation.

The Codes and Standards That Shape Australian Bathroom Ventilation

A bathroom in Melbourne can look finished and still miss the mark on ventilation. The room might have a shiny exhaust fan, a louvred window, and fresh paint, yet still leave moisture hanging around after a winter shower. That is why bathroom ventilation is tied to the National Construction Code, with state and territory rules applying it on the ground. The test is performance, not a guess based on the product in the ceiling, as set out in the NCC framework overview.

How the national framework works in practice

That matters in renovation work because ventilation now has to be documented, not assumed. Older habits relied on lines like, “there's a window, so it should be fine,” or “this fan looks strong enough.” The current approach is stricter. Builders, plumbers, and building surveyors need a clear path from design to inspection, with measurable outcomes they can point to.

For a bathroom renovation, that usually means one of two routes. If the room has a compliant openable window, natural ventilation may meet the baseline. If it doesn't, mechanical exhaust becomes the practical specification. For Victorian projects, that compliance sits alongside plumbing, waterproofing, and energy-efficiency checks, so ventilation is part of the whole building sequence, not a separate decision. You can read more about the local compliance process in our waterproofing compliance certificate guide.

The code is not asking whether you preferred a certain fan brand or grille style. It is asking whether the room can move moisture out in a way that can be checked on site.

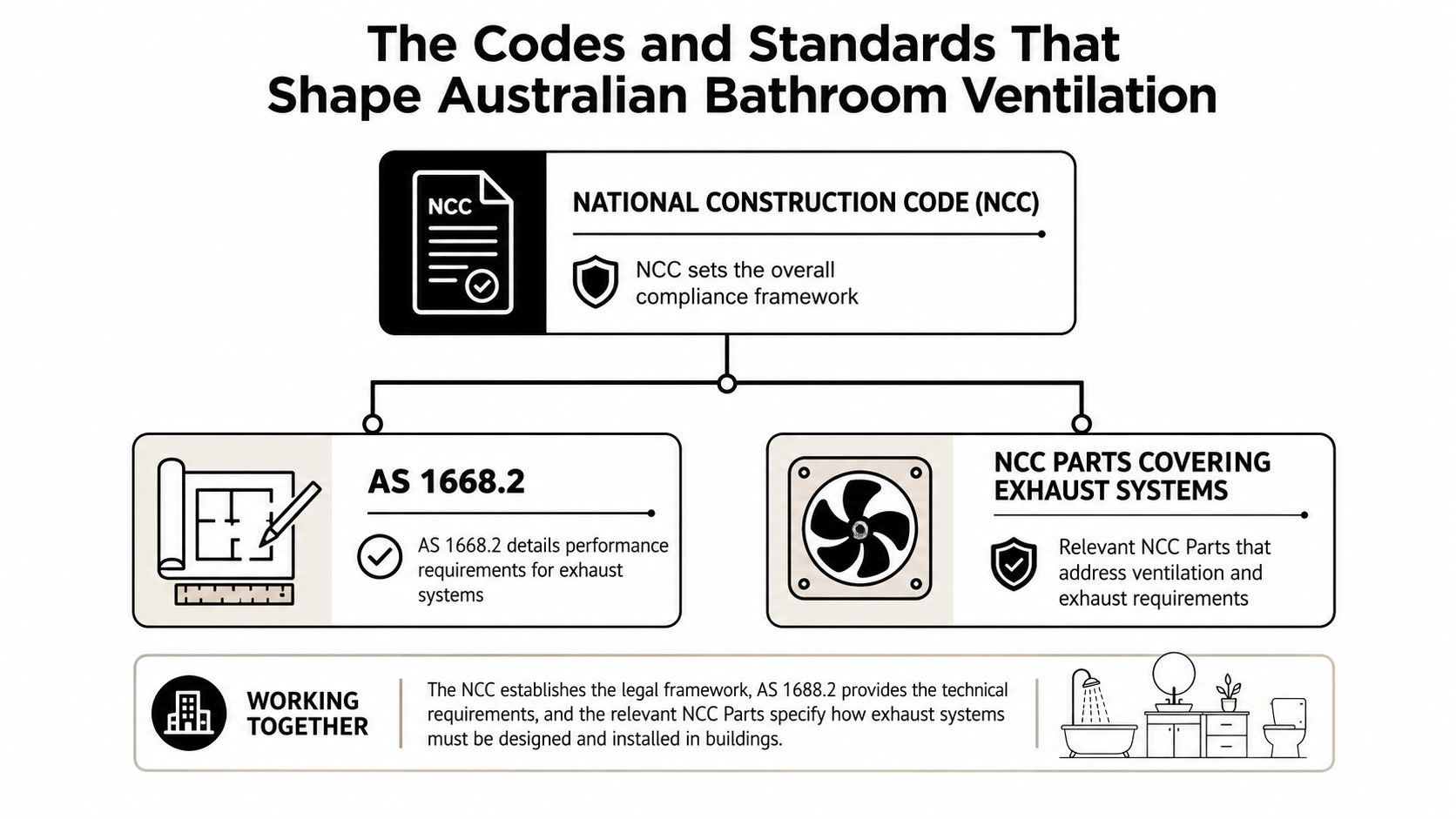

A diagram illustrating the Australian standards and National Construction Code requirements for bathroom ventilation and exhaust systems.

What registered builders look for

A registered builder coordinating a bathroom renovation is usually checking several things together. Is there a compliant natural pathway, is mechanical exhaust required, where does the duct go, and does the chosen system suit the moisture-control work around it? Those questions matter because the ventilation layout affects ceiling framing, electrical rough-in, and where waterproofing transitions finish.

The code sets the floor. The renovation design has to make that floor work in the real room.

That is especially true on Victorian jobs where compliance paperwork, plumbing inspections, and waterproofing sign-off can all interact. A bathroom can look complete and still fail the functional test if the airflow path was never properly planned.

Air Change Rates and Fan Sizing Explained in Plain Language

A fan rating on a brochure only helps if it performs well in a bathroom. A quiet unit that looks strong on paper can still fall short once it is connected to a long duct run, a tight bend, or a sloppy roof or wall termination. The number that matters is delivered airflow at the room, not the label on the box.

Turning airflow numbers into a renovation decision

For a standard 2.0 m by 2.5 m bathroom, natural ventilation needs an openable window of at least 0.25 m² if that is the path you are relying on. Mechanical exhaust is commonly specified around 90 m³/h under Australian guidance, which is a practical baseline for quoting and selection. If the room cannot realistically meet the window requirement, a mechanical fan is usually the better call.

Melbourne renovations expose the trade-off quickly. Internal bathrooms, apartment wet areas, and weatherboard additions often leave little room for a short, straight duct run. In those jobs, a fan can satisfy the paperwork and still struggle in daily use if the ducting, grille, or outlet is compromised. That is why airflow and the room layout have to be assessed together.

The other number that matters is the difference between odour removal and moisture removal. In Australian industry guidance, 25 L/s is often treated as the minimum floor, but for a bathroom with a shower, 50–100 L/s is the more realistic moisture-control range. A fan can be technically acceptable and still leave condensation on mirrors, paint, and ceilings after a long shower.

Bathroom Exhaust Fan Sizing at a Glance

Bathroom Type Minimum (L/s) Recommended (L/s) Equivalent (m³/h)
Small bathroom with light use 25 25–50 90–180
Standard bathroom with shower 25 50–75 180–270
Wet bathroom or steam-heavy use 25 75–100 270–360

The table stays simple because a homeowner needs a size that matches the room, not a sales pitch. A small powder room with light use can sit at the lower end. A standard family bathroom with regular showers needs more headroom. A wet room, a bathroom with a lot of steam, or a space that stays closed up in winter needs the strongest end of the range. If the bathroom has long showers, a shower-over-bath layout, or awkward ducting, I would not treat the minimum figure as enough.

Why brochure ratings can mislead

Fan brochures usually advertise a nominal output under ideal conditions. Real bathrooms do not run on ideal conditions. Once you add duct friction, bends, and poor termination, the actual airflow drops, sometimes enough to change how the room performs on a cold July morning.

That is why a builder should never approve a fan by catalogue alone. In Melbourne, I have seen compact systems work well in a straightforward villa conversion and then underperform in a top-floor apartment where the duct has to snake through tight ceiling space. The spec has to suit the room, the run, and the way the bathroom will be used.

Natural Ventilation Versus Mechanical Exhaust

A window sounds simple until you try to use the bathroom in winter, or in an apartment, or in a room where opening the window means giving up privacy. That's when natural ventilation stops being a neat idea and starts becoming a compromise.

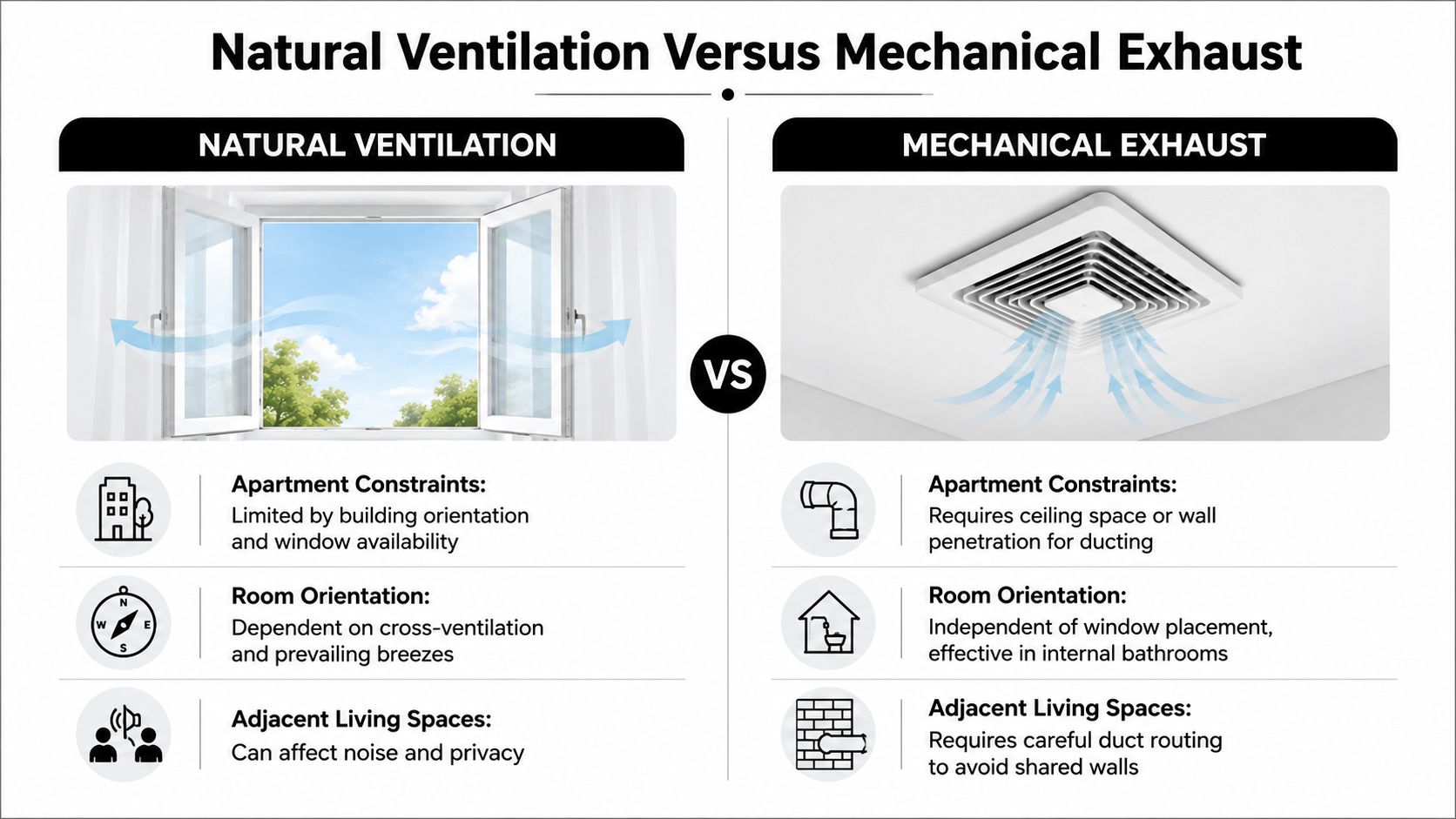

A comparison chart showing the differences between natural ventilation through windows and mechanical exhaust systems in apartments.

When a window is enough, and when it isn't

Under the NCC, the minimum natural-ventilation pathway for a bathroom is an openable window with a clear openable area of at least 5% of the floor area, and mechanical exhaust is commonly used where a window isn't practical (NCC ventilation guide). That's a useful rule, but it isn't a guarantee that the room will behave well in real use.

In Melbourne's apartment stock, many bathrooms are internal, tucked away from exterior walls, or part of a layout where the window is too small, blocked, or awkward to leave open. In those cases, mechanical extraction is usually the path that works. It doesn't depend on the weather, the occupants remembering to open the window, or the neighbours seeing into the room.

The privacy and orientation problem

A bathroom window can exist and still be a poor ventilation solution. If the room faces a walkway, another courtyard, or a tight side boundary, people won't leave it open for long. If it's a north-facing room that gets used in cold weather, the instinct is to shut it. That's human behaviour, not bad design, and the ventilation system has to work with it.

Mechanical exhaust also avoids the apartment problem where opening a window changes the room's comfort level without reliably clearing steam. In those projects, the fan becomes the dependable option because it works regardless of orientation or privacy concerns.

Hybrid setups are often the smartest

A window plus a fan can be a strong combination when the room allows it. The window helps with background air movement, and the fan handles the post-shower moisture load. That said, the fan still needs to be specified as if it's doing the work, because in many Melbourne renovations the window is there for compliance, not for practical extraction.

Placement and Ducting Best Practices for Real Bathrooms

The fan body is only part of the system. The route from the bathroom ceiling to the outside wall or roof is where many renovations go wrong, and it's usually the part nobody wants to revisit after the plasterboard is up.

Keep the air path simple

Energy-efficiency guidance from the Building America Solution Center notes that the exhaust duct should vent directly outdoors, the first three feet should be straight, and unnecessary elbows can significantly reduce airflow (bathroom exhaust fan guidance). That's not a theoretical point. Every bend adds resistance, and every bit of resistance makes the fan work harder for less result.

I've seen plenty of bathroom refurbishments where the duct was snaked around framing because it was convenient at the time. The room still “had a fan,” but the airflow at the termination point was weak. Once the ceiling is closed, fixing that mistake is slow and expensive.

Follow the ducting hierarchy

  1. Start inside the bathroom. Place the extraction point where steam gathers, usually near the shower zone or central ceiling area.
  2. Keep the first run straight. A straight start reduces turbulence and helps preserve the fan's output.
  3. Limit elbows and long flexible sections. Long, crushed, or sagging ducting makes the fan underperform.
  4. Terminate outside the building. Roof voids, attics, and enclosed cavities are not acceptable discharge points.

A short, direct path with a proper exterior cowl is usually better than a clever but messy route through the ceiling space. If the bathroom is internal, the duct may need more planning, not a more powerful brochure figure.

Practical rule: if the duct is hard to explain on a sketch, it'll probably be hard to live with in winter.

Why the finish matters

The exterior termination needs to be clear, functional, and protected against backflow. A neat grille doesn't help if the air can't exit cleanly or if outside air keeps pushing back into the line. That's why installation quality matters just as much as fan selection.

How Ventilation Interacts With Waterproofing and Condensation

A waterproofed bathroom can still fail if humid air lingers after every shower. The membrane protects the substrate from direct water, but it doesn't stop condensation on cold surfaces, and it doesn't clear the moisture that hangs in the room air.

Moisture moves differently from water

That distinction is the part many homeowners never get told. Waterproofing handles liquid water at the floor and wet zones. Ventilation handles vapour in the air. If one is missing, the room still suffers.

In Melbourne, that problem shows up fast in internal bathrooms and apartments where there's no natural cross-flow. The mirror fogs, the ceiling stays damp longer, and then the surfaces start looking tired. Silicone joints age faster, paint loses its clean edge, and mould finds the places where humidity lingers.

Australian industry guidance notes that 25 L/s is mainly an odour-control floor, not a moisture-control target, and that a shower bathroom is better served by 50–100 L/s for actual condensation control (bathroom ventilation guidance). That's the number range that helps reduce the mould and surface deterioration that follow persistent dampness.

Why builders need to coordinate the trades

Ventilation and waterproofing work best when they're planned together. The fan position affects ceiling penetrations. The shower screen position affects where steam sits. The membrane details matter where services pass through the room. None of those decisions should be left to chance.

A registered builder should be thinking about the whole moisture system, not just the visible finishes. The tiler wants clean lines, the plumber wants service access, the electrician wants a practical switch location, and the builder has to make sure the air path supports the room.

If you're planning the wet zone, this shower waterproofing reference is useful because it shows why extraction and waterproofing are part of the same conversation, not separate packages.

Standout point: a bathroom doesn't fail because one trade missed one detail. It fails when the details weren't coordinated.

A Renovation Compliance Checklist for Homeowners and Builders

The easiest way to manage ventilation on a renovation is to treat it as a stage-by-stage sign-off item. That stops the usual problem where everyone assumes someone else has already allowed for the fan, the duct, or the external outlet.

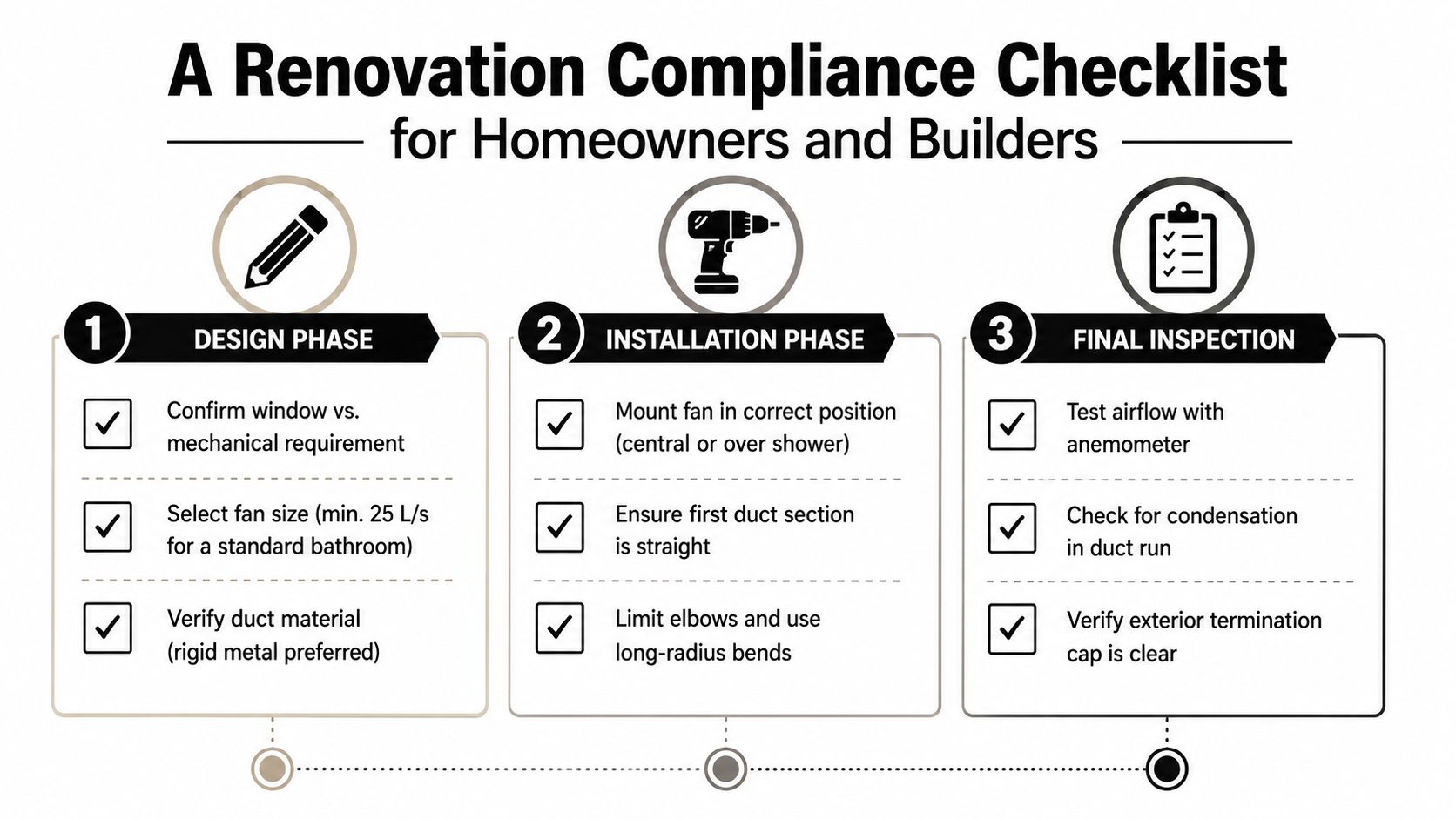

A renovation compliance checklist for bathroom ventilation featuring design, installation, and inspection phases for builders.

Design phase

  • Confirm the ventilation path. Decide whether the room relies on a window, a mechanical fan, or both.
  • Check the fan target. A standard bathroom should at least be planned around 25 L/s, with stronger extraction considered for shower-heavy rooms.
  • Map the duct route early. The route should be short, direct, and realistic before ceilings are closed.

Installation phase

  • Set the fan in the right spot. Don't hide it where it can't capture steam effectively.
  • Keep the first duct section straight. That helps preserve airflow and reduce resistance.
  • Use the fewest bends you can. Every extra bend makes the system harder to work.

Final inspection

  • Test the airflow. Don't assume the brochure rating made it to the grille.
  • Check the termination. It needs to discharge outside, not into a roof space or enclosed cavity.
  • Look for lingering condensation. If the room stays damp too long, the system needs review.

The homeowner's best question at each stage is simple. “How does this room clear moisture?” If the answer is vague, the specification is probably vague too.

This is also where a good registered builder earns their keep. They should produce a clear plan, coordinate the trades, and make sure the fan, duct, switch, and termination all line up with the finished bathroom.

Common Pitfalls and How to Avoid Them

The most common ventilation mistakes aren't dramatic. They're quiet, cheap-looking decisions that become expensive after the bathroom is finished and the symptoms start showing up.

The usual failure modes

A fan with a decent label can still disappoint if the duct run is long, crushed, or full of unnecessary bends. Flexible ducting is especially easy to damage in ceiling spaces, and once it sags or kinks, the system loses effectiveness. That's how a bathroom ends up technically ventilated but still damp.

Another common mistake is discharging into the roof void because it was the easiest path during rough-in. That isn't a shortcut. It just moves the moisture from the bathroom into the building fabric, where it can create a different problem later.

Oversized fans can also be a bad fit if they're noisy enough that people never use them. A fan that stays off because it's irritating is worse than a smaller one that gets switched on. Timer controls and humidity-triggered operation help here because they keep the fan running long enough to do its job.

  • Brochure ratings: match the quoted airflow to the actual duct path, not just the box.
  • Flexible ducting: keep it short and protected, or it'll underperform.
  • Roof void discharge: avoid it completely.
  • Noise: don't spec a fan people will hate hearing.
  • Switching: include timer or humidity logic where the room is prone to lingering moisture.

A window-only approach is another trap in apartments and ensuites where privacy or weather means the window stays shut most of the time. If the room can't be left open in real life, the natural option isn't a real moisture strategy.

The fix is usually straightforward when it's handled early. Choose the right fan, route the duct properly, terminate outside, and make sure the control method matches how the bathroom is used.

If you're planning a bathroom renovation in Melbourne or Victoria and want the ventilation, waterproofing, and tiling coordinated properly from the start, contact Melbourne Tiling Services P/L for a practical renovation plan, clear advice, and a quote that accounts for the actual conditions in your bathroom.
